XRA0374-3P1

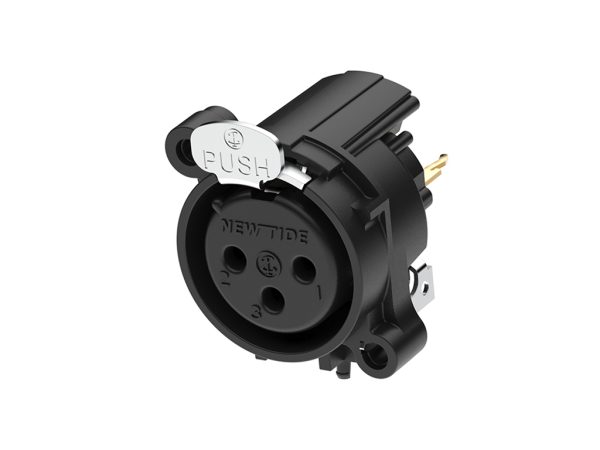

3 pole XLR plastic female receptacle, grounding: mating connector shell to pin1 and front panel, vertical PCB mount
Circular plastic shell XLR PCB mount panel connector. Reduced size and pitch for maximum packing density (23mm center distance). Newly designed tulip contacts with hard gold plating.
Features & Benefits
- tulip-type female contact
- Smallest XLR receptacle
- Polished contact areas, finished with hard gold plating
- UL94 V-0 rated, halogen-free
- Plastic housing with steel latch lock
Download
Technical Information
| Product | |
|---|---|
| Model | XRA0374-3P1 |
| Connection Type | XLR |
| Gender | female |
| Electrical | |
|---|---|
| Contact resistance | ≤ 6 mΩ |
| Dielectric strength | 1.5 kVdc |
| Insulation resistance | > 10 GΩ(initial) |
| Rated current per contact | 6 A |
| Rated voltage | < 50 V |
| Grounding Options | Pin 1 directly connects to the front panel and connector shell, eliminating the need for a separate ground contact |
| Mechanical | |
|---|---|
| Lifetime | > 1000 mating cycles |
| Wiring | Vertical PCB mount |
| Locking device | Latch lock |
| Mounting direction | Rear mounting |
| Mounting | Self-tapping screw 4-24(2.9x1.06) |
| Material | |
|---|---|
| Contacts | Brass |
| Insert | Polyamide (PA66) |
| Locking element | Steel SK85 |
