XRB0485-3P1

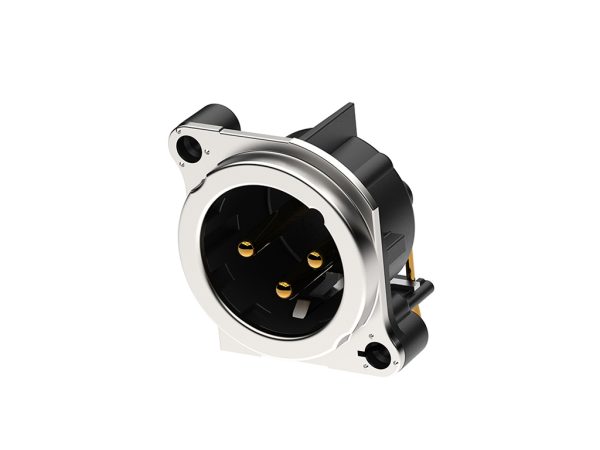

3 pole XLR plastic male receptacle, grounding: ground contact connected to shell ground, but not to front panel and Pin 1, horizontal PCB mount
Same as the XRA series with the exception of a metal mounting flange featuring continuous circumferential ground contact to the chassis for best EMC practice.
Features & Benefits
- UL94 V-0 rated, halogen-free
- Smallest XLR receptacle
- The metal mounting flange features continuous circumferential ground contact to the chassis, providing optimal EMC and RF protection
Download
Technical Information
| Product | |
|---|---|
| Model | XRB0485-3P1 |
| Connection Type | XLR |
| Gender | male |
| Electrical | |
|---|---|
| Contact resistance | ≤ 6 mΩ |
| Dielectric strength | 1.5 kVdc |
| Insulation resistance | > 10 GΩ(initial) |
| Rated current per contact | 6 A |
| Rated voltage | < 50 V |
| Grounding Options | Ground contact connected to shell ground, but not to front panel and Pin 1 |
| Mechanical | |
|---|---|
| Lifetime | > 1000 mating cycles |
| Wiring | Horizontal PCB mount |
| Locking device | Latch lock |
| Mounting direction | Rear mounting |
| Mounting | Self-tapping screw specifications : M2.5 DIN 7500 |
| Material | |
|---|---|
| Contacts | Brass |
| Shell | Polyamide (PA66) |
| Flange | Zinc diecast |
