XRB0475-3P1-E

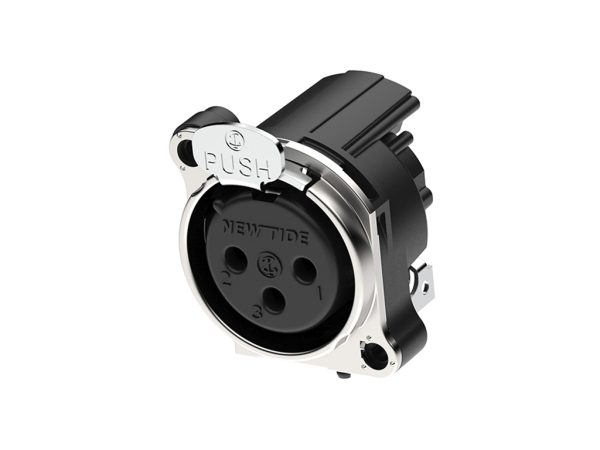

3 pole XLR plastic female receptacle, grounding: mating connector shell to pin1 and front panel, horizontal PCB mount, additional ground contacts

Same as the XRA series with the exception of a metal mounting flange featuring continuous circumferential ground contact to the chassis for best EMC practice.

Features & Benefits

  • tulip-type female contact
  • Smallest XLR receptacle
  • UL94 V-0 rated, halogen-free
  • Plastic housing with steel latch lock
  • The metal mounting flange features continuous circumferential ground contact to the chassis, providing optimal EMC and RF protection
  • Eight additional ground contacts

Download

Technical Information

Product
ModelXRB0475-3P1-E
Connection TypeXLR
Genderfemale
Electrical
Contact resistance ≤ 6 mΩ
Dielectric strength 1.5 kVdc
Insulation resistance > 10 GΩ(initial)
Rated current per contact 6 A
Rated voltage < 50 V
Grounding OptionsPin 1 directly connects to the front panel and connector shell, eliminating the need for a separate ground contact
Mechanical
Lifetime > 1000 mating cycles
WiringHorizontal PCB mount
Locking deviceLatch lock
Mounting directionRear mounting
MountingSelf-tapping screw specifications : M2.5 DIN 7500
Material
Contacts Brass
InsertPolyamide (PA66)
Locking elementSteel SK85
FlangeZinc diecast
Ground contact ringMetal
