XRB0475-3P-E

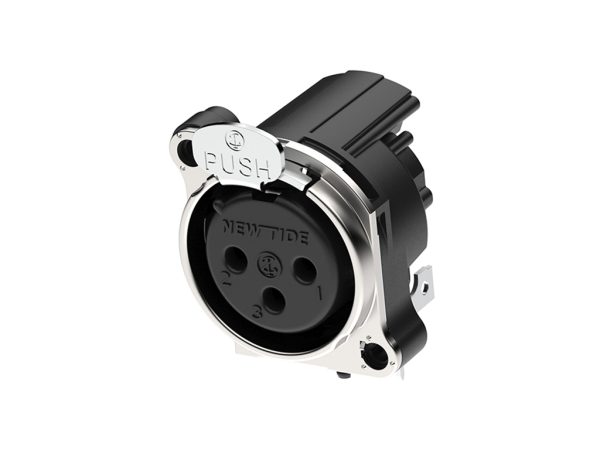

3 pole XLR plastic female receptacle, grounding: Separate ground contact connected to the mating connector shell and front panel, horizontal PCB mount, additional ground contacts
Same as the XRA series with the exception of a metal mounting flange featuring continuous circumferential ground contact to the chassis for best EMC practice.
Features & Benefits
- tulip-type female contact
- Smallest XLR receptacle
- UL94 V-0 rated, halogen-free
- Plastic housing with steel latch lock
- The metal mounting flange features continuous circumferential ground contact to the chassis, providing optimal EMC and RF protection
- Eight additional ground contacts
Technical Information
| Product | |
|---|---|
| Model | XRB0475-3P-E |
| Connection Type | XLR |
| Gender | female |
| Electrical | |
|---|---|
| Contact resistance | ≤ 6 mΩ |
| Dielectric strength | 1.5 kVdc |
| Insulation resistance | > 10 GΩ(initial) |
| Rated current per contact | 6 A |
| Rated voltage | < 50 V |
| Grounding Options | Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1 |
| Mechanical | |
|---|---|
| Lifetime | > 1000 mating cycles |
| Wiring | Horizontal PCB mount |
| Locking device | Latch lock |
| Mounting direction | Rear mounting |
| Mounting | Self-tapping screw specifications : M2.5 DIN 7500 |
| Material | |
|---|---|
| Contacts | Brass |
| Insert | Polyamide (PA66) |
| Locking element | Steel SK85 |
| Flange | Zinc diecast |
| Ground contact ring | Metal |
