XRA0385-5P

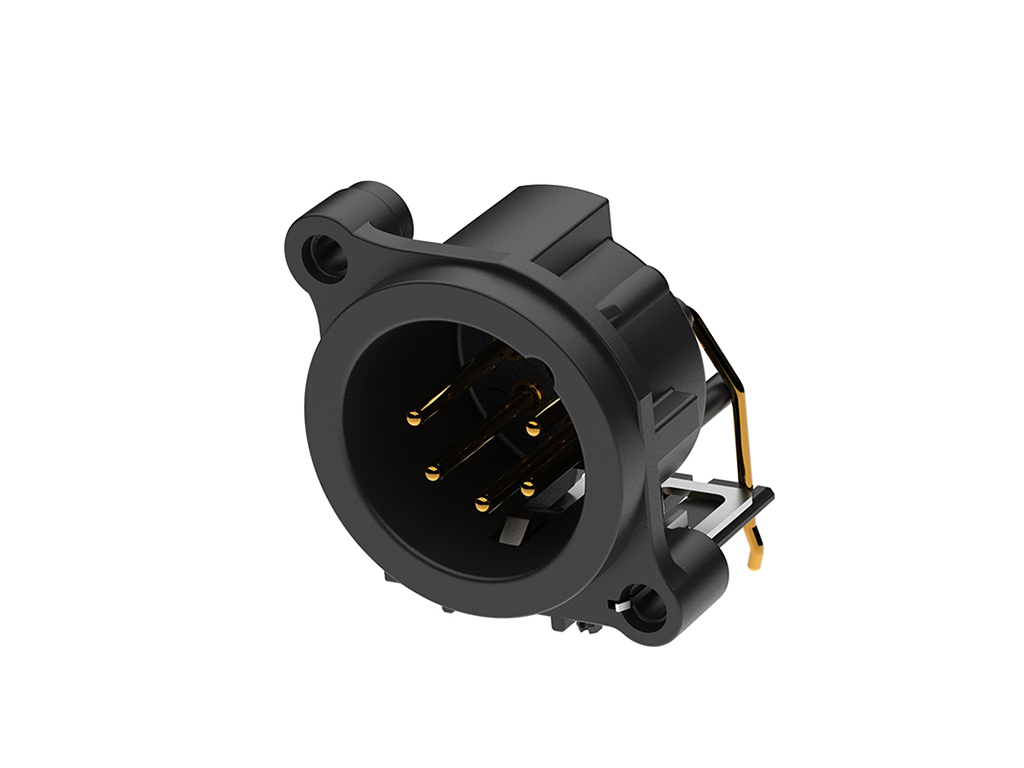

5 pole XLR plastic male receptacle, grounding: separate ground contact to mating connector shell and front panel, horizontal PCB mount
Circular plastic shell XLR PCB mount panel connector. Reduced size and pitch for maximum packing density (23mm center distance). Newly designed tulip contacts with hard gold plating.
Features & Benefits
- UL94 V-0 rated, halogen-free
- Smallest XLR receptacle
Download
Technical Information
| Product | |
|---|---|
| Model | XRA0385-5P |
| Connection Type | XLR |
| Gender | male |
| Electrical | |
|---|---|
| Contact resistance | ≤ 6 mΩ |
| Dielectric strength | 1.5 kVdc |
| Insulation resistance | > 10 GΩ(initial) |
| Rated current per contact | 3 A |
| Rated voltage | < 50 V |
| Grounding Options | Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1 |
| Mechanical | |
|---|---|
| Lifetime | > 1000 mating cycles |
| Wiring | Horizontal PCB mount |
| Locking device | Latch lock |
| Mounting direction | Rear mounting |
| Mounting | Self-tapping screw 4-24(2.9x1.06) |
| Material | |
|---|---|
| Contacts | Brass |
| Shell | Polyamide (PA66) |
