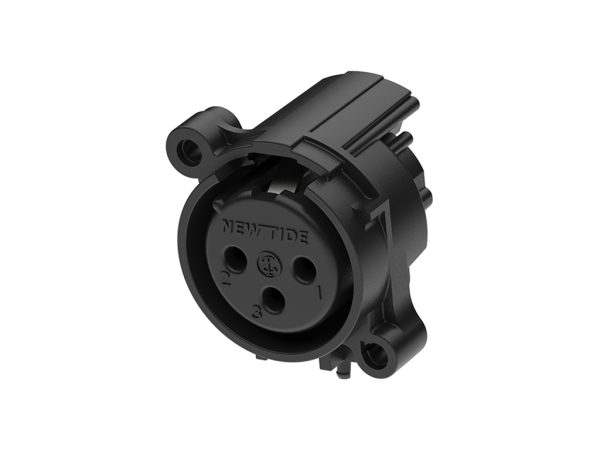

XRA0375-3P0-0
3 pole XLR plastic female receptacle, grounding: without ground / shell contact, horizontal PCB mount, uses a retention spring in place of a latch
Circular plastic shell XLR PCB mount panel connector. Reduced size and pitch for maximum packing density (23mm center distance). Newly designed tulip contacts with hard gold plating.
Features & Benefits
- tulip-type female contact
- Smallest XLR receptacle
- Polished contact areas, finished with hard gold plating
- UL94 V-0 rated, halogen-free
- Plastic housing with steel retention spring
Download
Technical Information
| Product | |
|---|---|
| Model | XRA0375-3P0-0 |
| Connection Type | XLR |
| Gender | female |
| Electrical | |
|---|---|
| Contact resistance | ≤ 6 mΩ |
| Dielectric strength | 1.5 kVdc |
| Insulation resistance | > 10 GΩ(initial) |
| Rated current per contact | 6 A |
| Rated voltage | < 50 V |
| Grounding Options | no grounding |
| Mechanical | |
|---|---|
| Lifetime | > 1000 mating cycles |
| Wiring | Horizontal PCB mount |
| Locking device | Retention spring |
| Mounting direction | Rear mounting |
| Mounting | Self-tapping screw 4-24(2.9x1.06) |
| Material | |
|---|---|
| Contacts | Brass |
| Insert | Polyamide (PA66) |
| Locking element | Steel SK85 |
