BNC2300

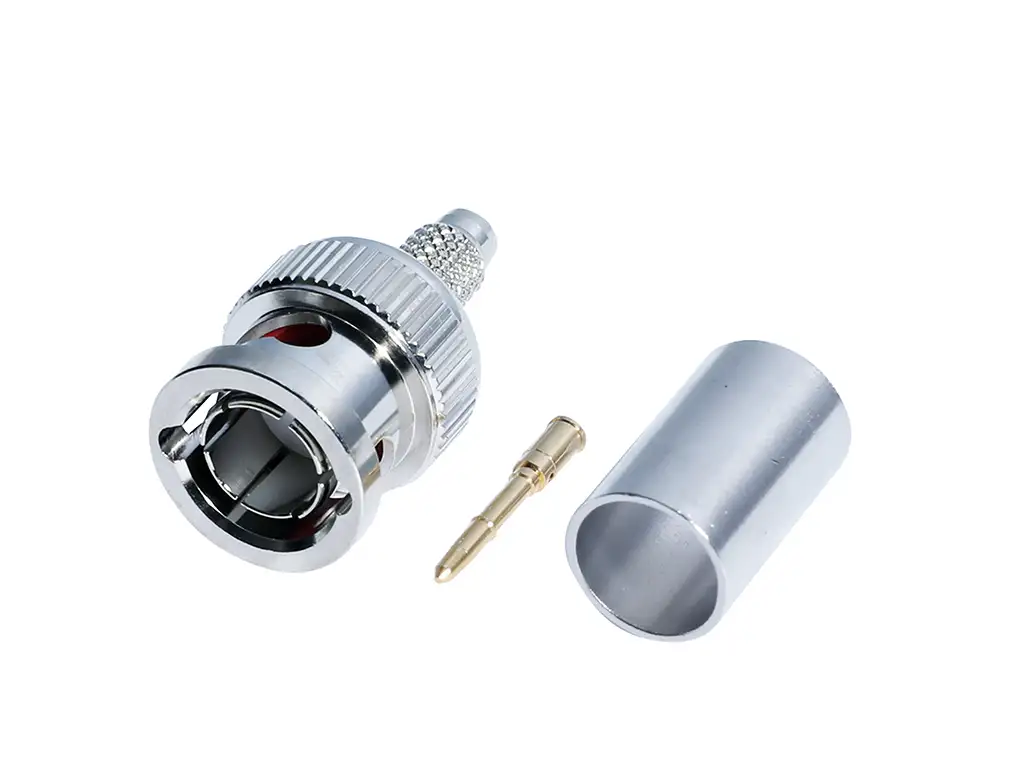

75ohm 12G-SDI BNC Plug Crimp for CANARE L-3.3CUHD
The connectors feature low return loss values for 4K and 8K signals
Download Data Sheet
Features & Benefits
Download
Technical Information
| Product | |
|---|---|
| Model | BNC2300 |
| Connection Type | BNC 75 Ω |
| Gender | male |
| Electrical | |
|---|---|
| Contact resistance | ≤ 10 mΩ (inner) |
| Dielectric strength | 1.5 kVdc |
| Impedance | 75 Ω |
| Insulation resistance | > 5 GΩ |
| Rated voltage | < 50 V |
| VSWR | ≤1.22 / > 20 dB up to 6 GHz |
| VSWR | ≤1.43 / > 15 dB up to 12 GHz |
| Mechanical | |
|---|---|
| Lifetime | > 1000 mating cycles |
| Locking device | Bayonet connection |
| Material | |
|---|---|
| Contacts | Brass |
| Insert | Polytetrafluoroethylene (PTFE) |
| Shell | Brass |
| Shell plating | Nickel |
